OR-ing Circuit Notes

First Published Oct 2017, R. Kwas  (Updated continuously)

Examples of OR-ing circuits
Brake Indicator
Single Lamp Directional Indicator

-----------------------------------------------------

An OR-ing circuit is a circuit where two inputs combine to activate a single function.  Sometimes, this can be as simple as tying two switches to activate a light, but sometimes it gets more complicated as all (normal) operating conditions (as well as possible failure conditions) must be carefully considered and accommodated...it's called engineering!

Readers of the SW-EM site will have run into several places where this kind of circuit may occur in a vintage Volvo...either from the factory, or in later retrofits or modifications.  In this article, the OR-ing circuit is considered more closely, because sometimes, simply tying the two activating functions together can bring with it some unwanted conditions...that's where OR-ing diodes come in...

-----------------------------------------------------

Examples of OR-ing circuits:

Courtesy Lighting ("Roof - Lamp" on 122 Wiring Diagram):  (Battery) Power is supplied by Fuse 4, and opening Either the Right OR Left Door OR switching the manual Switch applies a chassis connection to low side of the Light allowing current to flow.


Excerpt of the 122 Wiring Diagram.  Door switches are connected together at Junction Unit Terminal 1.  Closing either one will complete circuit and allow current to flow through Lamp.  This is the simplest ORing circuit and no blocking diodes are necessary.

---------

Brake Indicator on late Amazons and other models with dual Brake Systems:  Either a difference in the pressure of the two Brake Systems OR Handbrake away from its rest-position causes the Light to be activated...no blocking diodes required here either!

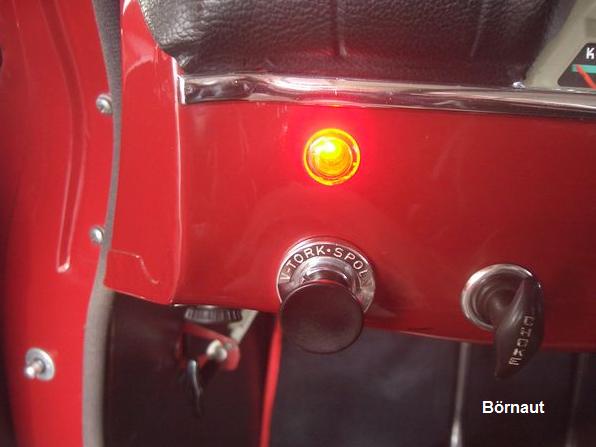

Brake Indicator on an Amazon, located 45mm above Wiper Switch.
Picture by Börnaut of the Volvoniacs Forum used with thanks and his permission.

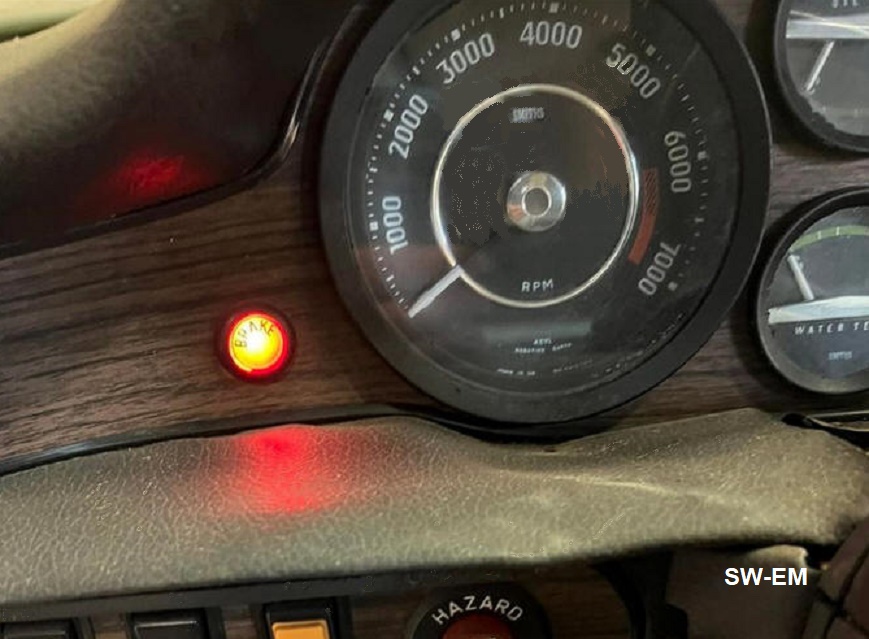

Excerpt of 1800E Wiring Diagram showing Brake Failure Indicator (20) supplied by Fuse 4 (Instrument power)
with activating wires  OR-tied at Brake System Pressure Differencial Sensing Switch (55) and Handbrake
Position Sensing Switch (48).

----------

Electric Cooling Fan control.  Either the Temperature Sensor OR the Manual Dashboard Switch can apply power to operate the Fan, but as a relay is doing the power switching, and it is controlled by chassis switching, no OR-ing diodes are necessary here either!  (The diodes shown in the circuit are strictly Snubbing Diodes).  LINK to:  Cooling System Electric Cooling Fan

----------

So why and when do OR-ing Diodes need to be used?  In the above simple examples, no further components were necessary because the two inputs completed the circuit to negative.  When the two circuits supply power however it is not simply enough to tie the two inputs together, because that would tie the two circuits together by way of the indicator and cause them to interact.  This explanation is somewhat simplified.  A complete theoretical explanation would be more involved, and perhaps not as clear as studying some more practical examples.

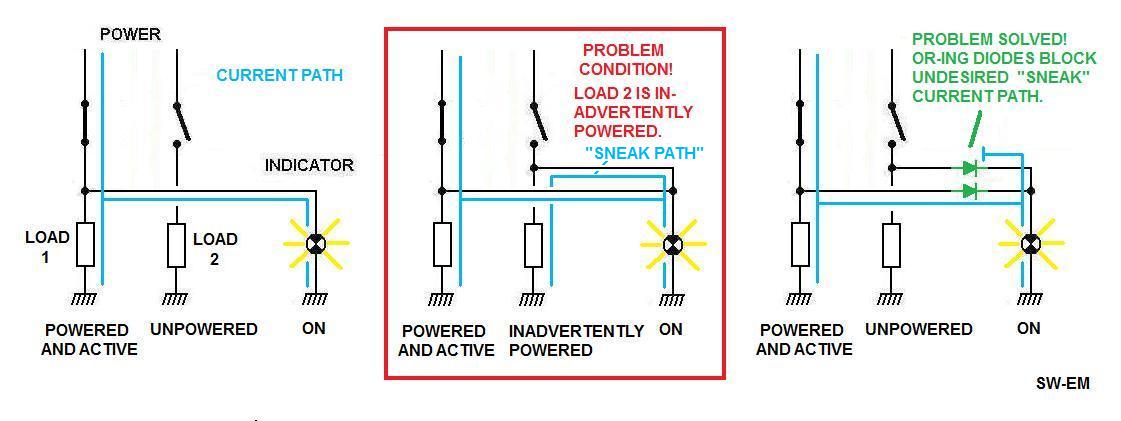

In the example below, an indicator is intended to show that either of two functions are powered.  Simply tying both of those functions together at the indicator means that activating one function (Load 1) would inadvertently activate the other function (Load 2) as shown below, center, through a "sneak" current path because of the connection at the indicator.  The way to prevent this is by use of the OR-ing (also Blocking) Diodes.  These allow either function to activate the indicator while still keeping the two functions under separate control and from interacting.


Requirement:  One Indicator for two Loads.  Simply connecting the two loads to the indicator is not enough!  ORing diodes need to be added to block the sneak current path.

----------

Single Lamp Directional Indicator "Blinker" Lamp of the 122 functions by electrically placing the indicator across the Right and Left Dir Ind circuits.  When powering one side with the Blinker Element by selecting with the stalk, the Lamp filaments in the corners of the vehicle, of the unselected side, provide a return current path for the Indicator in the Dashboard, and it flashes along.  This arrangement works fine when unmodified.

If however, we add an Emergency Flasher (which ties the Right and Left indicator circuits together), OR we install LED lamps in the corners of the vehicle (where the current return path resistance is increased because of the decreased current LEDs draw), the Dashboard indicator will not function without a change.  Here, an ORing circuit must be added, which routes power to Dashboard indicator from EITHER Right OR Left Directional Indicator circuit.

See also:  Directional Indicator ORing Diode Modification

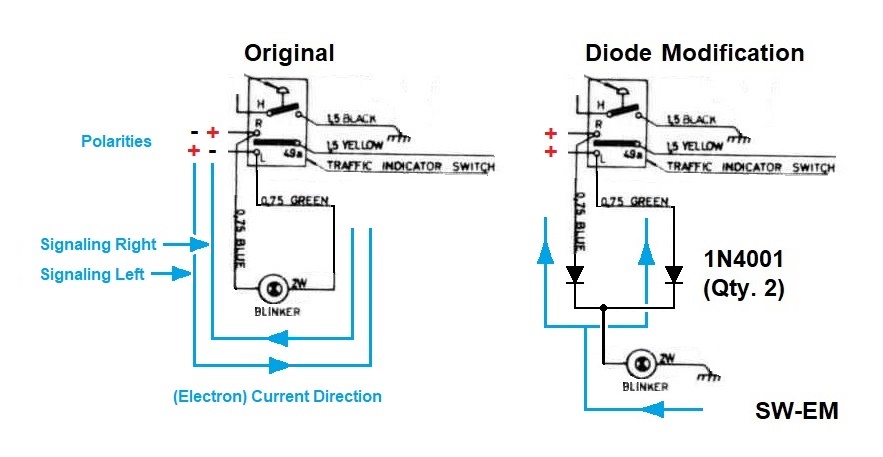

Original configuration showing direction of current flow through Blinker Indicator.  With Diode Modification, Blinker Indicator power
 can be powered by Right and Left circuits normally, OR both when tied together by E-Flasher Switch.  This circuit change makes current
 flow in only one direction in Blinker Indicator, so also would allow the option of making it an LED.



Note:  The Single Lamp Directional Indicator of the 1800 model, uses a three terminal Blinker Element, where the Element has a separate output terminal for the Dashboard Indicator, so the above explanation is applicable only to the 122 model with a two terminal Blinker Element!

----------

Another practical Example where ORing Diodes become necessary:  Power to Electronic Ignition Module:  Either Ignition Power terminal (54) of Ign Sw OR Solenoid power (50) must supply power during Starter cranking when term 54 is depowered.  At least one Blocking Diode is required here (the second one is not absolutely necessary, because of the sequential application of power from the Ignition Switch).  LINK to:  Ignition Modifications

------------------------------------------------------

LINKS:  An OR-ing Diode and a Snubbing Diode may be the same component, but they are used in very different ways.  See also:  https://en.wikipedia.org/wiki/Flyback_diode

------------------------------------------------------
