Realworld Experiences with Electrical Corrosion and ACZP
06/2015  R. Kwas (Anti-Corrosive Zink Paste [ACZP] is my generic term), updates on-going (mostly when the spirit moves me).

------------------------------------

Electric Service disrupted at Swedish Embassy*
Electrical service interruption at Joe E's. house


ACZP Droop Test

Reference Information

------------------------------------

Electric Service disrupted at Swedish Embassy*, because of Galvanic Corrosion.  One Sunday morning, not long ago, half of the electrical items plugged in at the Embassy weren't getting power?!?...including the coffeemaker...this was cause for Immediate and Decisive Action!  ...after operating the coffeemaker from an outlet which was powered, and averting crisis No. 1, a quick check of the electrical service panel showed the problem wasn't due to a tripped breaker, but that one of the two phases coming into the house was completely dead.  Half the electrical panel was deenergized.  Checking the meter, or seeing if branches had torn down a cable and looking with binoculars, at the connections to the transformer at the pole, revealed nothing unusual, and some of the neighbors, by now also standing around their front yard, were also experiencing similar power problems...the problem was clearly "on the pole".

When the utility service man arrived and checked, he discovered one of the two crimps directly next to the transformer was open.  It turns out, these (aluminum) crimps, connecting the transformer output wire (copper) to mine and several other customer's houses (with aluminum wire) were located just below the secondary output terminals of the transformer, and positioned vertically, the positioning allowing rainwater to enter the crimps, allowing a combination of Simple Oxidation and Galvanic Corrosion to finally triumph!  Aluminum and copper are a common combination in electrical distribution systems, and checking the Galvanic Chart, there is a significant 0.5V of Galvanic voltage, which will drive corrosion, to be expected.

After the nice serviceman replaced both crimps (with clamps), I asked him for the old ones in order to perform a dissection and post-mortem (I expect not many customers do that, but inquisitive minds need to investigate these things!).  When I cut them open at the Embassy-Technology Testing Center, what I found was no major surprise (to me)...corrosion had done its dirty work, and the insides (of both!) were filled with white and black aluminum oxides (both non-conductive!, see pictures and Reference information, Excerpt from Framatome Connectors International below), and insulation on both showed unmistakable signs of having been hot to the point of partially melting!.

Furthermore, the reason this happened can be explained partially in that the crimps had actually been installed wrong, and contrary to the power company installation guidelines (see Reference information, Excerpt from Framatome Connectors International below) which the serviceman pointed out...it seems that when installed vertically, there are specific guidelines for crimps, which call for the aluminum (least noble) cable to always be above the copper (more noble) cable

But installed wrong, they were...so the natural forces were allowed to slowly do their chemical thing.  As it was, these crimps lasted for a long time (more than 20 years).  If they had been located near the ocean, I expect it wouldn't have taken quite as long, but their inevitable failure was preprogrammed! ...as they say:  "You can't fool Mother-Nature!"

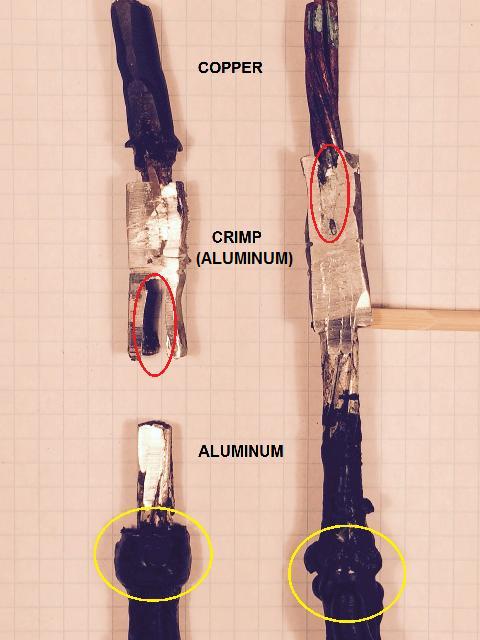

Crimps, showing Simple and Galvanic Corrosion at Reds and Insulation heat damage at Yellows.
No evidence of ACZP is visible in the crimp areas.

The heat damage evident in the picture above was generated was a result of the Resistance Heating of the oxidized joint...recall that Ohms Law explains that when a current is passed through a Resistance a Voltage Drop (VD) occurs, and this VD results in some power being dissipated as heat!  This also means that all other Loads in that circuit were subjected to that voltage drop occurring across that Resistance...this sometimes is quite apparent in the form of a dip in the lights as a heavy load is switched ON.  I can't say that I recall  significant dips before the incident, but I can say that I haven't noticed any after the repair.

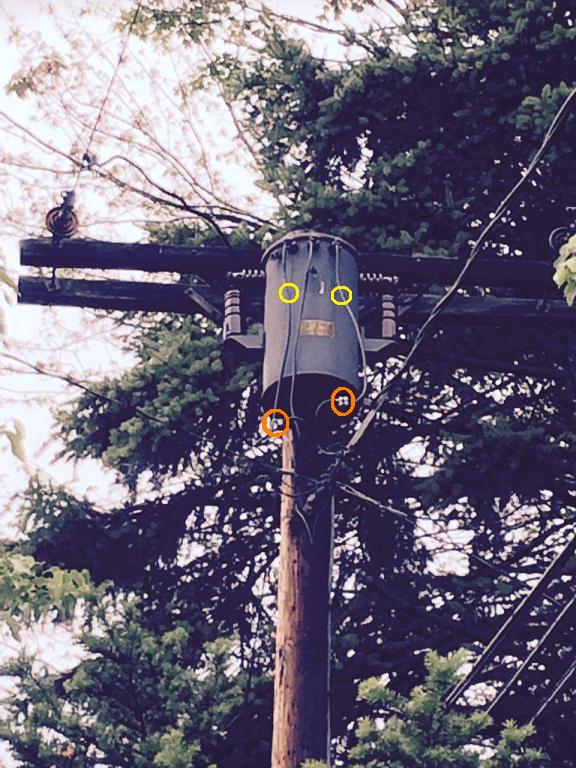

  Service Transformer with old crimp locations at Yellow.  Orange shows replacement cable-clamps (not crimps) in place.

------------------------------------

Electrical service interruption at Joe E's. house, due to galvanic corrosion.  Apparently, one phase was also out at Joe's house not long ago.  A two-man service crew was dispatched from the power company to check and repair.  When they removed the meter, the source was immediately obvious.  One (probably aluminum) clamp which is supposed to secure the (maybe copper, maybe aluminum, he didn't mention it...if copper then it's Galvanic corrosion, if Aluminum is simple corrosion or Oxidation....but what's the difference...result is the same!...see also Reference information below) wire at the meter socket was surrounded by corrosion and so loose, that arcing and carbonization had finally opened the connection totally.

After he located it, one service-man called to the other to "...get the Penetrox from the truck!"...but Joe was quicker...he just ducked into the garage and retrieved the sample I gave him, prompting the service-man to ask "...how do you know about Penetrox?", to which Joe answered,  "I just know about it...!"

Joe bought me a nice Weissbier the next time he saw me (thanks Joe!).

------------------------------------

Additional:

ACZP Droop Test:  In order to get some objective and comparative data on the droop, and migration factor, a Droop Test was performed on ACZP of various manufacturers, at the Swedish Embassy - Technology Testing Center.  This test is not a extensive scientific study, but quick, real-world test which would check one of the most important parameters of the products:  Staying where applied!

Test consisted of placing a .5ccm testblob of the ACZP of three manufacturers*, on an inert, vertical, test substrate (G10 circuit board with solder-mask [epoxy] surface treatment) as might be encountered in actual use.  Two test surfaces were prepared and exposed to two different temperature conditions.  Sample 1 was left at relatively constant ambient temperatures of approx. 60F (the embassy cellar!), simulating application on an electrical panel.  Sample 2 was exposed to temperature cycling from approx. 60F to 120F (the embassy attic!...where temperatures cycle wildly from night and day in the summer, but nowhere near as high as engine compartment temps!) simulating application in a less-than-maximum-temperature engine compartment.  Sample 3 was installed in an Engine compartment, to experience the worst-case environmental conditions occurring there...test is on-going!

*  Penetrox and Ox-Gard were purchased outright, Noalox used was an engineering sample kindly made available by their product manager after their response to my advising them of their product's unsatisfactory performance.  See:  Reference Information, Excerpts of Correspondence with Ideal

Results of Sw-Em ACZP Droop Test:

Preliminary Results (after 1 week, no picture)

After only a week, one of the Noalox test blobs had separated and part of the mass, lubricated by the carrier, had drooled down the vertical surface worse than I've ever seen under the nose of a three year old (6 inches!!)...and that was on the ambient temp sample...I can only imagine what the elevated/cycled temp sample looks like! (Actually, not nearly as bad, see results of Sample 2 Evaluation below).
Penetrox:  No product separation, no position or shape change, no droop observed.
Ox-Gard:  No product separation, no position or shape change, no droop observed.

Results at End of test (after 1 month):

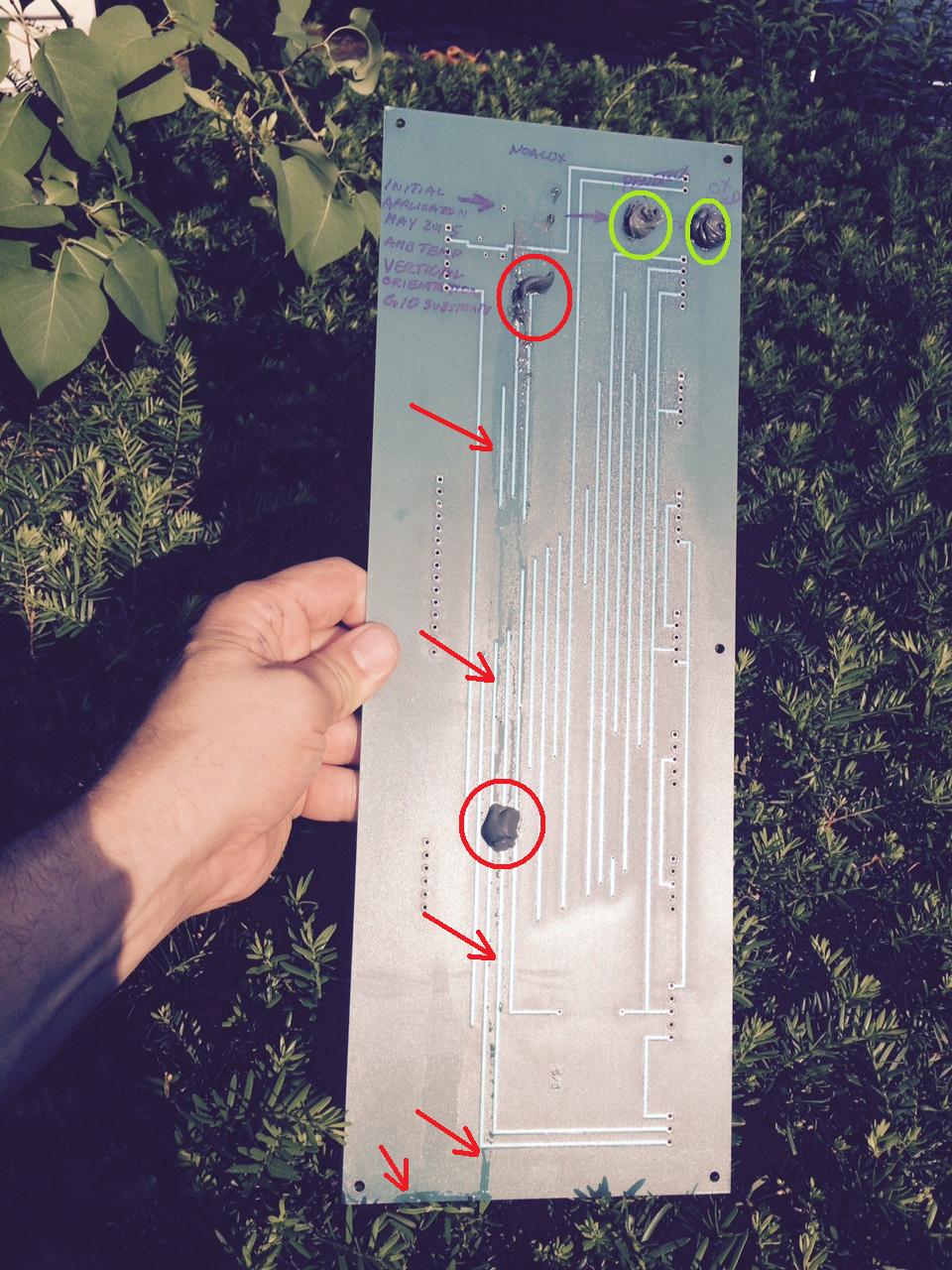

Picture of Sample 1 ACZP Droop Test exposed to ambient temperatures
(natural lighting to accentuate substrate surface):  At Green, Penetrox and Ox-Gard products have remained where they were applied more than one month earlier, and unchanged.  At Red, Noalox test blob has moved from its original area of application, separated into two parts, as well as having separated from its carrier which has run down to the test surface edge.

Sample 1 Evaluation:
Noalox:
Severe drooping and product separation of carrier has occurred.  Part of test blob has run down 10 inches, and carrier alone has continued to run down to test substrate edge some 17 inches (it would have run further if able).
Penetrox:
No drooping or separation occurred.  The test blob remained essentially unchanged in location and appearance from the day of application.
Ox-Gard:
No drooping or separation occurred. The test blob remained essentially unchanged in location and appearance from the day of application.


---------------

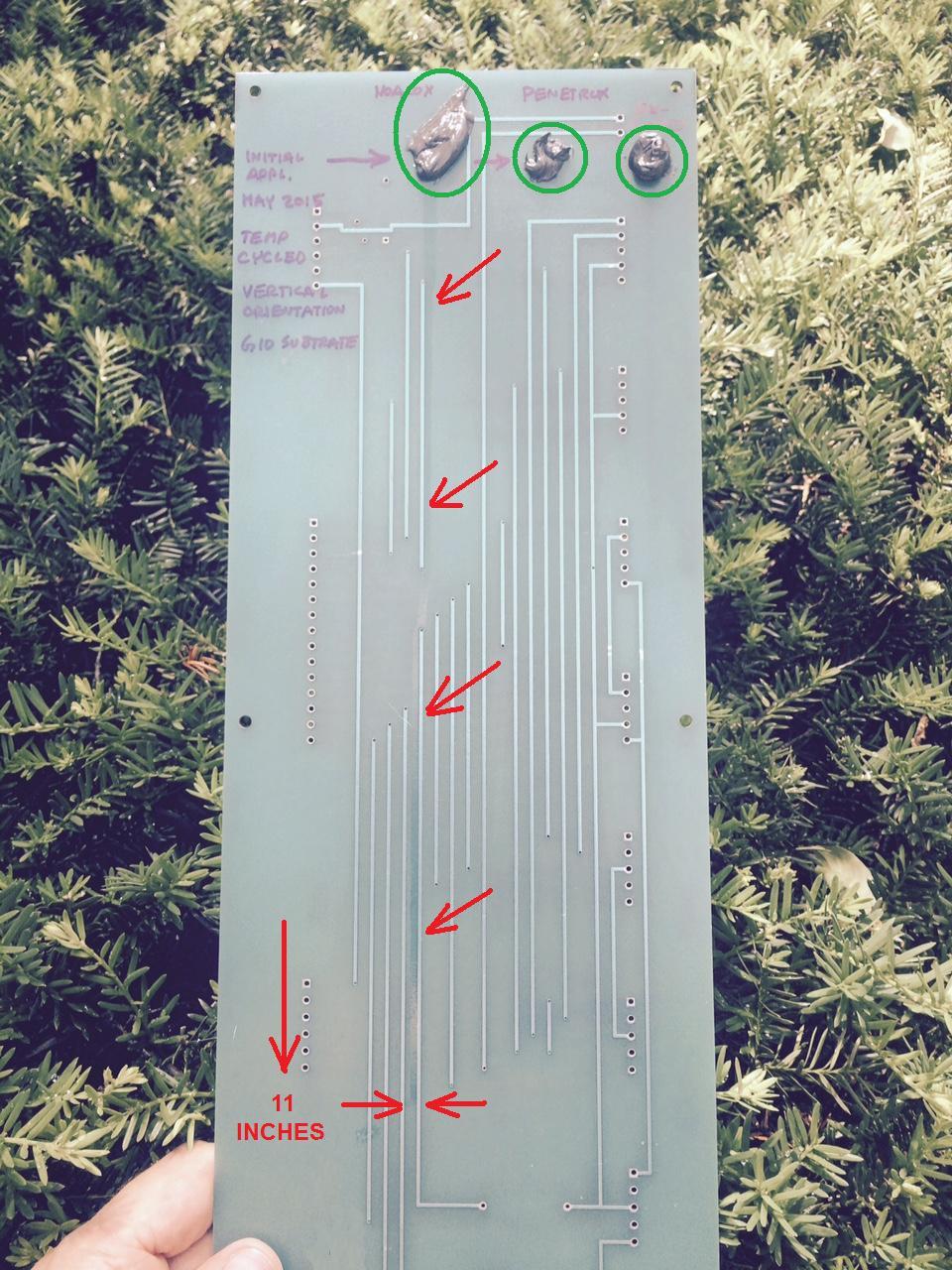

Picture of Sample 2 ACZP Droop Test exposed to cycled temperatures:
At Green, all three samples have remained where they were applied more than one month before.  At Red, Noalox carrier has separated and run down more than 11 inches.

Sample 2 Evaluation:
Noalox:
Slight drooping and product separation of carrier has occurred.
Penetrox:
No drooping or separation occurred.  The test blob remained essentially unchanged in location and appearance from the day of application.
Ox-Gard:
No drooping or separation occurred. The test blob remained essentially unchanged in location and appearance from the day of application.

------------

Droop Test Conclusions:  The formulations and viscosity of Penetrox and Ox-Gard are such that they absolutely stayed where applied...this is an important product characteristic to allow it to perform its' intended function...as they say:  No runs, no drips, no errors!

Noalox sample on the other hand, which manufacturer stated was of a formula with "changes and improvements " (See:  Reference Information, Excerpts of Correspondence with Ideal) on continues to exhibit the unsatisfactory action I had observed on previous samples, separating and running away from area of application.  Sorry, guys...I don't see any "improvements"!

The difference in results between the Noalox samples 1 and 2 is due to the separation of the product...Sample 1 was well on the way to separating (again!) in the container before application on the test surface, so as soon as it was liberated from its squeeze container, the carrier started running away, allowing the testblob to separate into two parts and taking them both, at different rates, along...but that demonstrates the whole point and my (continued) complaint!...it shouldn't need remixing to homogenize the entire container just before application.  This proves it it still separating.  I invited Ideal to try to change my mind (See:  Reference Information, Excerpts of Correspondence with Ideal), but my test results and considered opinion of their product are unchanged, because the performance of their product is unchanged!

My Recommendations:    Penetrox and Ox-Gard are well suited and recommended for the long-term protection of electrical connections from Simple and Galvanic Corrosion on vintage vehicles or houses.  Noalox is not recommended for use in vehicles or houses or anywhere for that matter at this time (Ideal has not changed my mind!), because of its' continued low viscosity and resulting migration and separation tendencies!

Sample 3 Evaluation:

PLACEHOLDER



See also:  Simple Corrosion/Oxidation vs. Galvanic Corrosion and Burndy's Penetrox A vs. Ideal's Noalox vs. Gardener-Bender's Ox-Gard

------------------------------------

Reference Information:

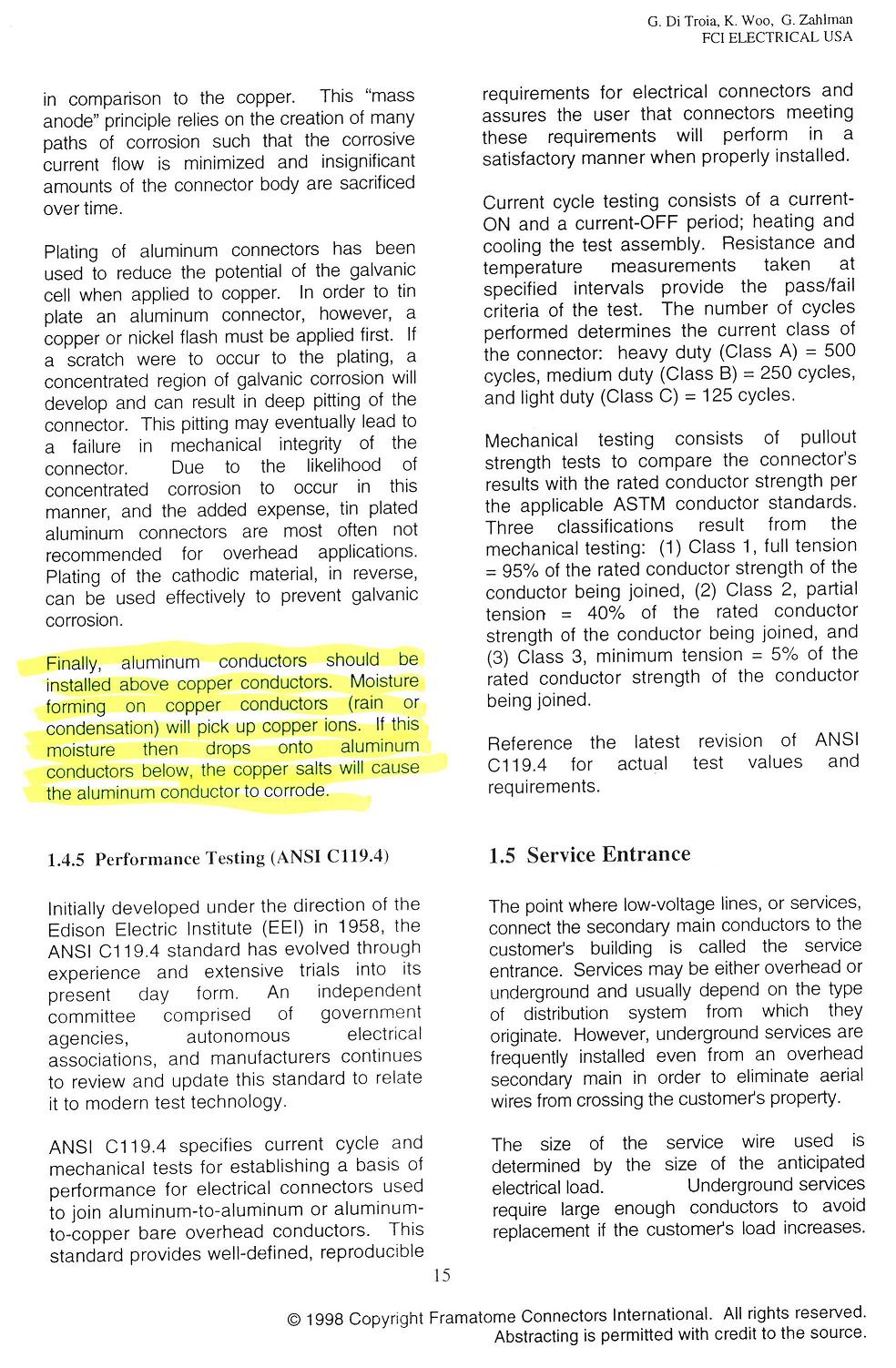

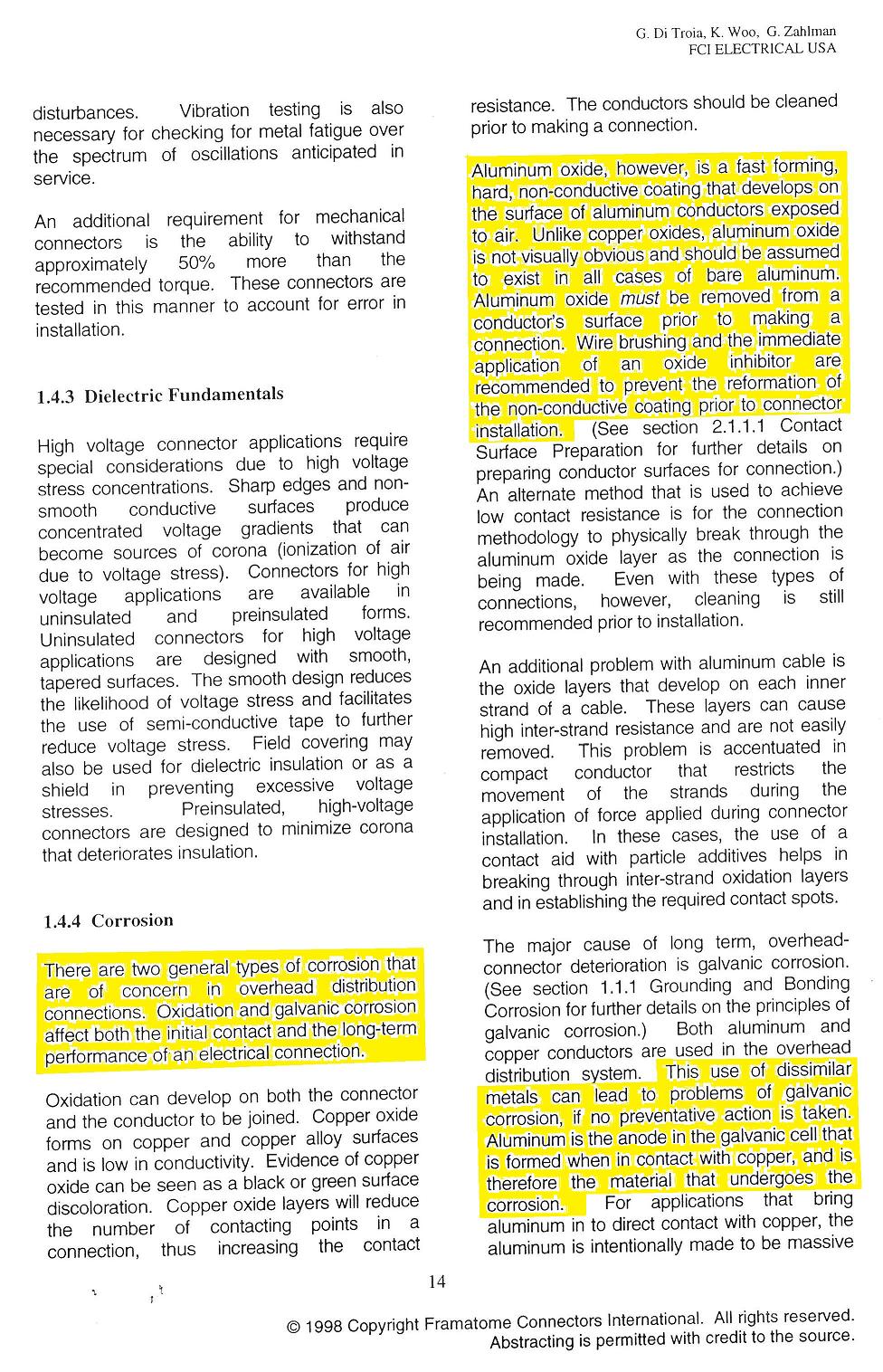

Excerpt from Framatome Connectors International 1998 publication (title?), which a friend at the power company was able to locate (thanks Fred G.!)...all interesting and applicable, but particularly relevant information is highlighted.

------------------------------------
