Anti-Corrosive-Zinc-Paste (ACZP) for Electrical Connections

First published in Dec 2008 R. Kwas, Updated continuously  [Comments with additional Info or emphasis added.]

--------------------

Is ACZP conductive?
Unique Metaphor

Reference Information
    Suggested uses for ACZP

Fuse-ends
    Galvanic Chart

    Comparison of Zinc Dust filled Grease Products by Different Manufacturers

Braided Cable

--------------------

Recent posting of mine to the Brickboard.com 200 subforum:

"In an automotive environment with temperature changes, condensation, out and out soaking by rain [and worse] water under the hood, rubber boots, shrink tubing, tape, o-rings etc are all temporary and not effective in the long-term, because they are not hermetic/gas-tight seals...if you want a PERMANENT protection from environmental attack for your electrical connections, use Anti-Corrosive Zinc Paste (NO! not dielectric Grease!)... it'll protect your connections...including SUBMERGED (if that should ever come up...ie. Chappaquiddick)! See: http://www.sw-em.com/anti_corrosive_paste.htm

I've been using it and recommending it for all low voltage connections (not Ign Hi-V) on the Brickboard 444-140 subforums for years - no decades!, and sending it out with my upgrade kits for use on connections...no complaints yet!!...and no intermittent electrical gremlins afterwards either! I've been convincing and converting one vintage vehicle owner at a time...maybe you should consider using it too...see link!  "

--------------------

Background:  To keep getting trouble-free service from electrical connections in our vintage vehicles, is pretty important.  To help with this, I highly recommend the use of Anti-Corrosive-Zinc-Paste (ACZP, is my generic term).  This is paste of conductive Zinc particles in a grease suspension, and should not be confused with insulating dielectric grease, which is often also recommended (maybe because the word dielectric has the word "electric" in it, so it must be good for 'em...WRONG!), but which is not the best solution.   Why anyone would want to apply an insulating grease on a place where you want a good electrical connection is beyond me, because if this insulator actually got between the contacts, it would be degrading the connection, whereas when ACZP gets between contacts , Condition B (see below!) protection is taking place...read on...ACZP has two distinct advantages as it acts both microscopically as a sacrificial anode and superficially, creating a Gas-Tight-Joint (GTJ) to protect electrical connections....use it on new connections and when restoring old ones!

Zinc containing anti-corrosive pastes only protect an existing good electrical connection ...they will NOT improve a poor old connection (contrary to what one might wrongly take from their product info), so they sure as hell wont improve anything if slathered on the outside of a poor connection.  Disassembly and a good cleaning are required first.  This may be as simple as pulling off a 1/4" spade type terminal, and abrading any oxidation from the spade terminal (squeezing the mating terminal to restore a decent spring action...or better yet, and to be sure, replace the entire connector...apply paste to wire after stripping and before inserting into crimp - OPTIMAL!  Link to:  Making a Proper Crimp), also applying the paste onto the flat terminal, and reinstalling the connector.  On more permanent connections such as the heavy current battery cable connections of the starter/solenoid, this requires a slightly more involved disassembly, but a cleanup to shiny metal is again required, then application of paste, and reassembly...the forces of the fasteners will displace the paste around the joint...excess can be wiped away.

Formulation viscosities range from Burndy's Penetrox A, a thick paste with very firm, almost putty consistency, which I have found will tenaciously stay where it is applied - even overhead or at elevated temperatures, to Ideal's much thinner Noalox which totally separates in the container, needing to be remixed before use...disappointing!...I much prefer the Penetrox...it's consistency does make it very difficult to coax out of the plastic squeeze bottle.  I wound up cutting open the half full bottle and repackaging it to a much easier to use flat tin container.  A toothpick or similar serves as a throw-away pinpoint applicator.  More recently, I have discovered Ox-Gard by Gardener-Bender, and had a response by Ideal promising to improve the characteristics of their product.

LINK TO:   Simple Corrosion/Oxidation vs. Galvanic Corrosion and Burndy's Penetrox A vs. Ideal's Noalox vs. Gardener-Bender's Ox-Gard

LINK TO:  Sw-Em ACZP Droop Test

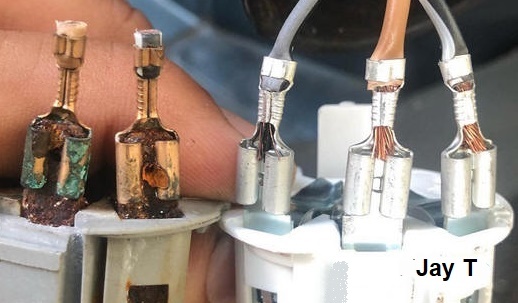

LINK TO:  Realworld Experiences with Electrical Corrosion and ACZP

Many different styles of connections are used on cars, some of these can be considered to be of a "high contact pressure design" (1/4" push-on, all bolted) but some of these connections must be considered a "low contact pressure design" (544, 122 and 1800E&ES Euro-Fuses, and especially the 3AG fuses used on the 1800; bayonet lamp sockets).  In the "low contact pressure design" case, displacement of the grease from the current carrying area is not assured because of the low pressure, and certainly not as good as it might be, which can in fact make for a poor path for the electrical current, so this is NOT a good place to use the dielectric grease.  Anti-corrosive paste, is, on the other hand perfectly suitable for ALL low voltage electrical connections (not High-Voltage Ignition)!  There is no need to think about what kind of connection we are using it on!  That is why I make the following statement.

Suggested uses for electrical anti-corrosive paste:  Just about all automotive electrical connections that one wishes to get long-term, uninterrupted service from...including battery, chassis strap, fuse to holder, lamp to socket, antenna connections...etc.  As a matter of fact, if anyone can come up with an automotive connection where it would not be suitable, I'd love to hear about it!

-------------------------

Is ACZP conductive?  Can (or should) it even be called "Conductive Grease"?
Answer:  NO it is NOT, and should NOT be called that!

[Calling it "Conductive" on product data sheets is embellishment by the Marketing Dept. which the Engineering Dept. (who knows calling it this is hokum!) was apparently not able to veto and correct!]

As it consists of a grease base filled with conductive particles, ACZP is not conductive as none of the particles are in contact with each other.  They are in fact surrounded by a non-conductive matrix.  A simple test with an Ohm meter confirms this [See also "Unique Metaphor"!]:


Conductivity Test:  Ohmmeter probes in a dab of ACZP show no conductivity...not in a 5" long snake or a 1/2" blob!

 Related Excerpt from a Forum Thread:  http://www.volvoforums.org.uk/showthread.php?p=2040833#post2040833

"...is  product (ACZP) compatible with all electrical metal interfaces?  For instance I believe the battery post contacts would not be aluminum to same or to copper. Is there any interface where this product would be harmful." [A valid question!]

My Response:  "There is (thankfully) no aluminum used in the electrical systems of our cars, only copper (wiring and some terminals), brass (terminals), tin (terminals and plating on some copper terminals), steel (studs for connections for ring terminals and chassis), lead (bat post and clamps)...I think that lists most if not all of them...

ALL of these metals are compatible with and will benefit from the long-term protection ACZP formulations give on reassembly (connection surfaces should be clean and free of corrosion/contamination first!). Ox-Gard and Penetrox A are suitable. Noalox is not."  [See below!]

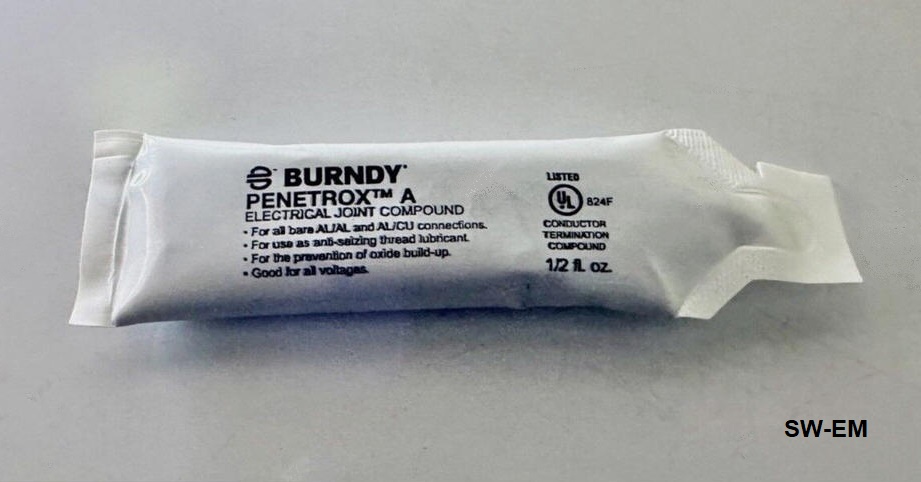

[Note:  As can be seen in picture above, AL/AL and AL/CU are listed on the Penetrox A product label, because these are the typical dissimilar connections an electrician will encounter...the additional dissimilar combinations we will encounter in vintage vehicles must be considered on the Galvanic Chart ...and I certainly have!...and we find that Zinc is lower on this chart that all of the metals which occur in the vehicles, meaning the zinc presence in the ACZP surrounding and between the connection will act to neutralize any corrosion which might start on those connection due to contamination present. ]

-----------------

ACZP is actually non-conductive!  That's because the conductive zinc particles...more like zinc dust really, are suspended in non-conductive grease, and so are not in contact with each other...no direct conductive path actually exists across a blob of it (see above)...so itís pretty benign stuff at the low voltages present a vehicleís electric system, and should not be considered to be making electrical contact or carrying any current...and thatís why lathering it onto a connection without first separating and cleaning will only externally cover the connection and not take full advantage of the chemical benefit of the zinc particles...

When in place between and around two contacts which have mechanical pressure pushing them together, the benefits occur at the microscopic level.  Three distinctly different conditions take place.  To understand and appreciate the advantage, a finer inspection of these conditions is presented here:


ACZP at work!


Detail of ACZP at work!

Condition A - Direct Contact of Base Contacts.  (Great...thatís the whole point!)...not much more needs to be explained here!  These areas are in fact, the only current carrying areas!  Without them, weíre in the dark!

Condition B - Base Contacts are Bridged by Conductive Particles:  As the two contact surfaces touch each other either by sliding under substantial contact force (like the push-on connector shown), or by forcing the surfaces together (ring connector where a nut provides the high compression force, or even bare wire in a crimp), some of the particles are sheared or compressed, bridging the two surfaces.  In this case, the zinc particles, being made of one of the least noble metals due to itís low station on the nobility chart , (see:  Galvanic Chart), and most willing to give up reactive ions, then act as zillions of sacrificial anodes which give up their ions, effectively passivating the area on a microscopic scale, while allowing the important base metal contacts to keep their ions and thereby remain undamaged by corrosion.

Condition C - Non-Bridging Particles in Suspension and Encapsulation:  Since obviously most of the paste will be displaced, actually only a relatively small fraction of the zillions of tiny zinc particles will bridge the two base contacts.  In fact, most will just be in suspension in the paste and will not be in physical contact with either electrical contact.  These particles in the rest of the blob of grease which surrounds the connection donít carry any current (see above), or give up any ions...as a matter of fact, they donít do much at all besides take up space, and can be considered to just sort-of be along for the ride (kind-of like Steve G. in high school).

So the secondary benefit is realized from the Encapsulation as the soft paste is displaced to the next easiest place to be...right next to and surrounding the joint.  This encases the joint in a protective coating which excludes moisture laden air in Oregon, or salty ocean air in Miami, or sulfuric acid droplets around the battery just about anywhere, from getting to the connection to do their dirty work and compromise it.  The cycle of new moisture getting to the contact surface promoting new corrosion is broken. A Gas-Tight-Joint has been made.  As noted before, with the creamy low viscosity of Idealís NOALOX product, the encapsulation benefit will be compromised as soon as the material runs away...and it will (from what my experience and semi-scientific but objective practical tests have shown.  See:  Sw-Em ACZP Droop Test    )...how would you like it if your toothpaste ran off the brush?  ...I personally would look for a new brand of toothpaste!

Link to Additional Information:  Since I have used the 1/4" push-on terminal as an example here, the reader might be interested in this: The Lowly .250" Push-On Terminal

Unique Metaphor:

My Response to a Volvo Blog:

mkjtang; Please be aware that ACZP is not conductive as a blob, because the particles of zinc dust are all surrounded by a grease matrix...sort-of like the peanuts in the chocolate of a Mr. Goodbar, but on a smaller scale...the point is that until it is compressed between the contacts, it doesn't do much electrically or chemically [beyond protective encapsulation, Condition C above], but once compressed between the two metal surfaces, such that the zinc particles are in contact with the base contacts, they can do their beneficial chemical thing [Condition B above, plus "Unique Metaphor"].  Sort-of like your teeth mashing the chocolate aside until they contact and crush the peanuts [Condition C is chocolate, Condition B is peanuts...if you don't mash through it, all you taste is chocolate...only when you mash it together do the peanuts make themselves known!


Author's unique (and tasty) metaphor for why even ACZP is non-conductive!
...and likely never to be seen in any engineering book!

...I have suddenly developed the inexplicable urge for a chocolate snack...!]

-----------------------------------------------------------

Reference Information:

Suggested uses for ACZP:

For those who think soldering terminals and wires is the best, IT IS! and you're right!...but applying ACZP is the next best thing!, because it also results in a Gas-Tight-Joint!

Crimps:


Applied to stripped wires before inserting into crimp.  [...out of a little container which I repackage it into and send out with each SW-EM Kit.  From the amount on the stripped wires compared to what's in the little condiment container, it can be seen that there is enough for many, many connections...maybe a whole car's worth!]


Push-on Connectors:


Applied to 1/4" push-on terminal tab and/or mating connector with a wooden stirrer-stick.



Ring Terminals:


Applied to Ring term and/or its Stud...and yes it is also applied to every Alt Kit (2 pin) push-on connector!



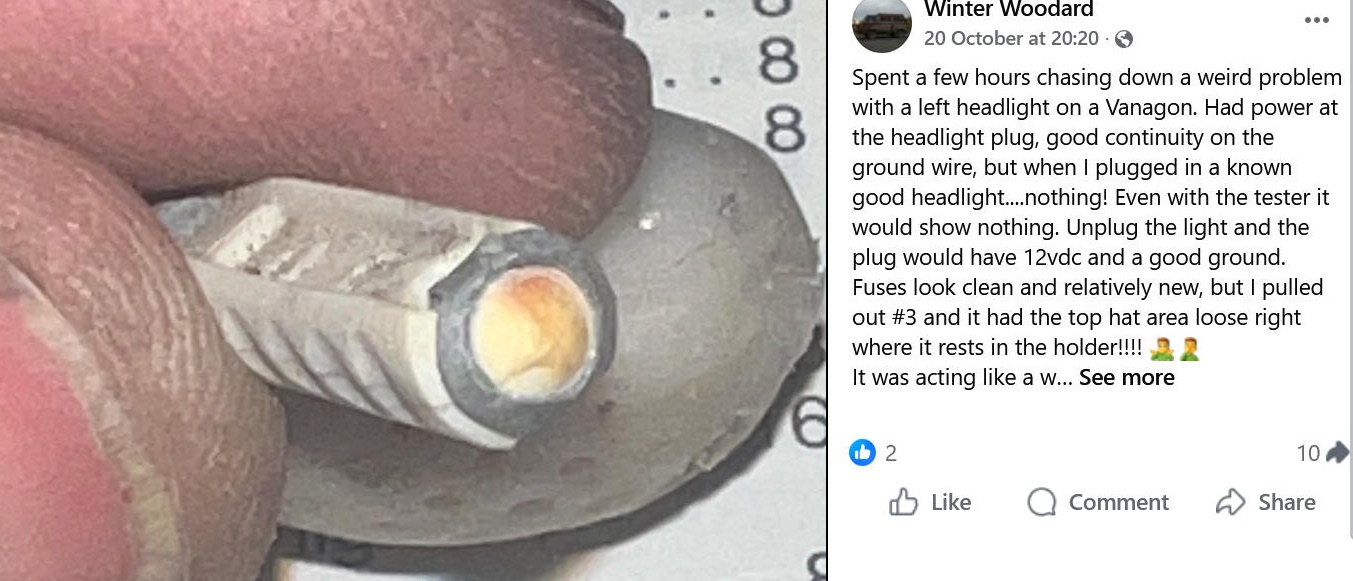

Fuse-ends:


Applied to Eurofuse ends and/or fuse terminals.  [Yes...twist the fuse after initial installation...but ONLY ONCE, to seat it in place and displace the ACZP and assure a firm contact, because you'll (likely) never have to concern yourself with it again...yes, I said (likely) NEVER!]



Lamp-bases:


Applied to a previously cleaned brass lamp-base, including locking pins and main contact. [Clean socket too!  See also:  https://www.sw-em.com/Amazon_Rear_Light_Fixture_Restoration.htm (Bulb-Locking-Pin) and Practical Application of ACZP]



Other suggested uses (no pix yet, but the reader should get the idea!) Battery Terminals, Chassis connections...etc.

---------------

Galvanic Chart:


It can be seen that Zinc, because of its low station on this chart is one of the best metals for use as a sacrificial anode...something which the maritime industry has known about, and taken advantage of, for a long time!  Contact with Zinc makes a "high" voltage, which is what drives the corrosion action, when in contact with almost every other metal.  Note from the chart, we're talking in the range of only tenths of volts, but that is enough!



---------------

Comparison of Zinc Dust filled Grease Products by Different Manufacturers:

From Burndy's site (http://ecatalog.fciconnect.com/fci/datasheet.asp?PN=P8Ab&FAM=Penetrox&P=127610,127616):

Penetrox A Anti-Oxidant:  Petroleum Base with suspended zinc particles

PENETROX oxide-inhibiting compounds produce low initial contact resistance, seal out air and moisture, prevent oxidation or corrosion, exhibit superior weathering characteristics, are usable over wide temperature ranges, and provide a high conductivity "gas-tight" joint.  All PENETROX compounds contain homogeneously suspended particles. The particles assist in penetrating thin oxide films, act as electrical "bridges" between conductor strands, aid in gripping conductor, improve electrical conductivity and enhance integrity of the connection. The specially formulated PENETROX compounds are for use with compression and bolted connectors providing an improved service life for both copper and aluminum connections. Additionally, the non toxic compounds are an excellent lubricant for threaded applications reducing galling and seizing



Excerpt of Brundy's Tech Info sheet on the different Penetrox formulations.

------------------------------------------------------

From Ideal's site (http://www.idealindustries.com/IDEAL-EZ/prodcat.nsf/Tables/Noalox?OpenDocument ):

Noaloxģ Anti-Oxidant Compound

------------------------------------------------------

From Gardener-Bender's site:  http://www.gardnerbender.com/en/ox-100b

Ox-Gard:

------------------------------------------------------

My e-mail response and clarification to an email... "I thought the zinc in it made it a bit conductive."

The zinc particles are metallic and so conductive certainly, but since they are surrounded by a matrix of grease carrier [See also "Unique Metaphor"!], ACZP is not conductive per se, and it is not a general conductivity which brings with it the benefits...it is only when applied to contacts that benefits occur...considered more closely, there are three mechanisms happening:

A - Metal of contacts directly in contact.  These areas are carrying the circuit current, and these areas we would very much like to prevent from degrading.

B - Zinc particles between contacts are mechanically squeezed between contacts and are in electrical contact with same.  This allows galvanic action to take place on a microscopic level, neutralizing any corrosion of the base contacts.  This is the benefit unique to any zinc-containing grease only.

C - Soft paste is displaced around contact areas when contacts are mechanically joined, to encapsulate, lock out and exclude any contamination from getting to joint.  This mechanism is also occurring when using "Dielectric Grease" (or any other grease for that matter), BUT with the possible big negative effect of locking IN any contamination and allowing it to do its thing unchecked, as there is no mechanism B with any grease which has no zinc particles.

--------------------------------------------------------

Immediate effects and benefits are lubricating the insertion/mating of contacts, or lamps (it is a lubricating grease after all!)...long term benefits and effects (because of the mechanism B unique to ACZPs) are no growth of corrosion products between current carrying surfaces (like lamp bases), which will eventually interfere with contact and circuit current.

------------------------------------------------------

Braided Cable:

Response to a post on the VW Vanago sub-forum about adding a (braided) Chassis Strap solving a slow-cranking issues:  "...added a ground wire from a starter bolt to the underbody. Solved the issue. Had 2 other buses later, same thing, same fix."

Braiding is good because as you probably are aware, the small individual conductor gauge is very tolerant of vibration and movement an engine to frame connection is subjected to...the issue is terminating it...big industrial crimped (or better yet, soldered) lugs are best, but simply doubled up and deflecting the strands around the securing/connecting bolt (with a fenderwasher with OD larger than braid width, so that it captures all the strands) will do it also quite adequately. Anoint the whole thing with Anti-Corrosive Zinc Grease, especially the terminations for long-term protection, and it will serve well for a long time, including exposed to the elements. (See: https://www.sw-em.com/anti_corrosive_paste.htm ) Cheers from the vintage Volvo world!

EDIT: What I forgot to add is that the tolerance of movement/vibration of braided wire is not absolutely necessary...by adding in a generous loop between the end termination or supports, a similar tolerance can (almost) be achieved using normal stranded wire...not optimum, but OK...as a super alternative, welding cable (heavy gauge, super small-gauge strands to accommodate high current and lots of movement in service!) can also be used very effectively. ...the stuff is expensive, but you don't need a long length! Protecting it with ACZP, still applies!



------------------------------------------------------

Links:

A Good Reference:  Radio amateur K1TTT 's page for more good info on these products including pricing/sources:  http://www.k1ttt.net/technote/antiox.html  ]

Link to related thread (warm wires!):  http://www.brickboard.com/RWD/volvo/1317588/140-160/fuel_pump_wire_connections.html

Link to another Radio Amateur's page on ACZP:  https://www.w8ji.com/dielectric_grease_vs_conductive_grease.htm   He is clearly an individual also with much technical and hands-on experience, but I don't so much like his presentation and explanation and comparison between dielectric grease, ACZP and its non-conductivity.  I have tried to explain it here as best I could, and like my explanation better (reader shouldn't be surprised by this!), but his title already bothered me (..." dielectric-grease vs conductive grease", because as far as I know, there is no such thing as "conductive grease"...all grease is non-conductive and therefore dielectric!...we cannot and should not describe ACZP as this [see results of conductivity test above] , even though ACZP manufacturers sometimes do this!! in their product infos [...welcome to product description embellishment by the marketing department!] ...plus, he includes anti-seize and thermally conductive greases in his discussion products which have different specilized uses again, further muddying the issue...

Comments on his introduction:  "

Some claim dielectric grease is conductive [they are WRONG, and should look up the term "dielectric"!] or abrasive [maybe they should look up the term "grease" too!!] containing silica that increases wear. (It doesn't contain silica).[Note to the poorly informed:  Silica is NOT silicon!]

The most frequent Internet complaint is that dielectric grease insulates connections [it indeed would if the contact surface/pressure area factor of a particular connector style is not taken into consideration!...in other words, in a LOW contact pressure situation, the non-conductive grease WOULD get between contacts, increasing resistance, and making connections less conductive]. Some call pure silicone grease an "insulating grease".[Because IT IS!!!] The general basis for this claim is in the word "dielectric" used in the name. The word dielectric is assumed to mean the connection will have future problems because "dielectrics" are insulators [exactly...so why would one put an insulator where one wants a GOOD connection???  If the insulator doesn't cause connection problems immediately, the chance for it causing connection problems later still exists, so why would we want to leave a time-bomb in there?]. Generally, authors predict greases with powdered metal (in slang "conductive greases"[THERE'S NO SUCH THING!] will improve or maintain connection quality over time [that's the whole point!] while dielectric greases will isolate connections because "that is what dielectrics do".

" Nonetheless, it's good to hear info and another explanation from a different source:

------------------------------------------------------
