1800E Brake Lock-up due to Lack of Free-Play...between Brake Booster and Master Cylinder

Jul 2022 R. Kwas [Comments added]

I would expect the info herein to be applicable to all models with tandem Brake-Boosters and Master Cylinders, when replacing MC, or disassembling any part of the Pedal/Booster/MC assembly.

------------------------

After renewal of Caliper and Flex-lines on his 1800E, as well as bringing Brake Booster back to functional and finally contributing (by correcting a Check-Valve found to have been previously installed in the wrong direction!), this owner found the Brakes now locking all wheels during a test drive, and posted to looking for help:

Excerpt of FB posting by Mike S.:  ...72 1800E back on the road after a lengthy garage stay, so all the calipers were stuck so I rebuilt them all with replacement pistons, replaced all 6 brake hoses, that all seems ok, on my test drives brakes worked, not great, after a short trip the brakes were dragging to the point of stopping the car when I pushed the clutch in, the brake pedal was like a rock at the top of its travel. I have not messed with the master cylinder or pedal assembly and they used to work fine years ago. One thing I found that might have bearing on the problem is that I found the check valve for the booster was (since I’ve had the car) in backwards so I turned it around. "

My response:  "If Calipers and Flexlines have been replaced [and Brake issues persist], in addition to suspecting Master Cylinder [This was subsequently replaced, and did not correct, but may have actually contributed to the symptoms.], I also suspect adjustment and interaction of Master Cylinder Actuating Rod into Brake Booster (has this been touched/changed?)...if this is out of position/adjustment, it can result in effectively continuously applying the brakes a little, and Booster (now that it's working!) does the rest...and that sounds like your symptoms..."

Mike's findings:  "...a solution, not the fix, thinking it was the master cylinder not releasing the pressure, and not knowing how to adjust, I loosened the nuts on the master and shimmed with washers… problem found[!!], brakes no longer stayed pressurized. Now to find out how the adjust the activation rod between the master and pedal/booster..."

My Response:  "Spacing the MC away correcting the issue, confirms interaction of MC and Booster, and free-play needs to be adjusted...I suggest you decrease length of Thrust Rod (6) and threaded part of Yoke (7) by the thickness of the spacing washers you added. " [It would seem that Volvo did this by way of a Transfer Pin and Spacer Washer(s)/Shim(s).  Read on!]

Source of graphic: Service manual 1800E 1971, under Group 54 Auxiliary Brake System.

Conclusion:  Thrust Rod (6) must have some clearance/free-play to MC Piston when Brake Pedal is at rest.

What Mike found:

Mike Sparkes pictures used with his kind permission.

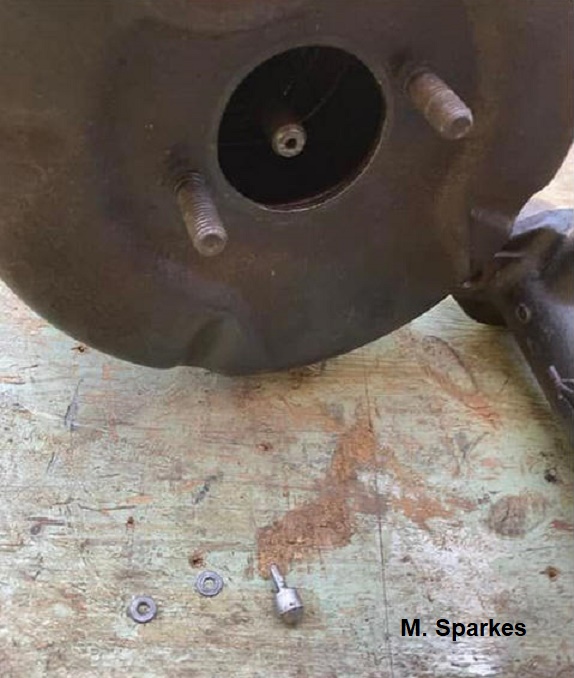

Actuating Rod fine length adjustment by way of Spacer Washer(s)/Schim(s) and a Transfer Pin.

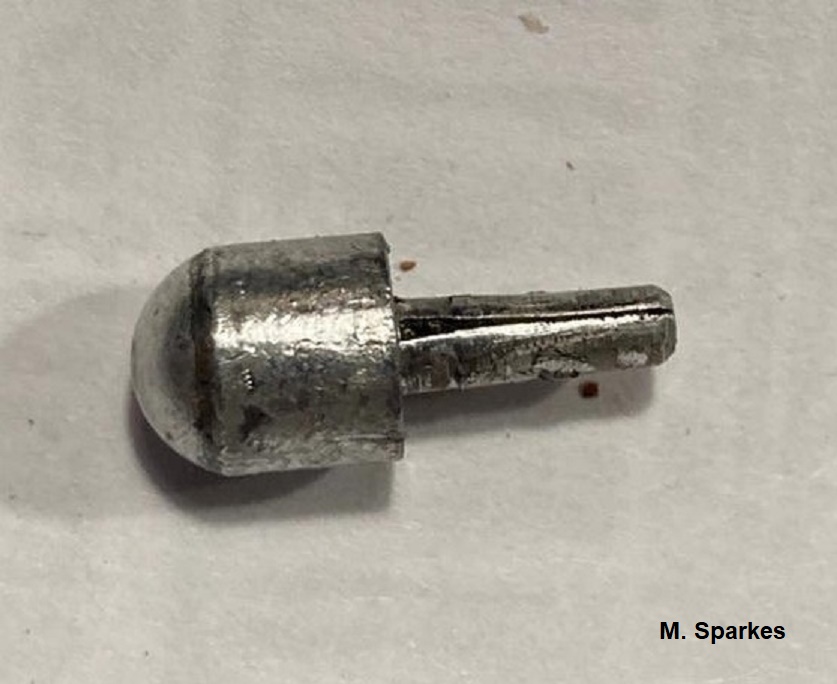

Close-up of Transfer Pin




Here is the marked-up factory drawing from the 1800E Service Manual to add and capture the pertinent info.

It would seem that the design and manufacturing dimensions leave a generous amount of free-play which must be minimized, and this is done by way of the Spacer Washers/Shims on the Transfer Pin  This also means, that when replacing the Master Cylinder, the interfacing dimensions should be carefully checked, and if necessary the SW/S must be adjusted to leave a slight gap (no SW/S at all would result in too much of a gap/free-play, which would translate into a longer Pedal), and a stack of SW/S too think would result in a negative clearance (MC would always be depressed a slight amount), leading to the "locked [or partially applied] brakes"  symptom described above.

Of Course, the same applies when replacing the Pedal assembly or Booster...interfacing dimensions should always be double-checked to assure one is replacing likes-with-likes...and they are equally adjusted!

I would say this is another example of "Two Wrongs make a Right"! ...in that, when the Check-Valve was installed in the wrong direction, the Brake Actuation rod was not "helped" into the MC, so the fact is that it did not have the required free-play did not result in any perceptible change...only after the helping action of Brake Booster was restored, did the lack of free-play only make itself known through symptoms.

--------------------

Reference Info:

http://volvo1800pictures.com/document/manual_71/Service_Manual_1800E_1971.pdf

---------------------
