Trunk Lip Drain...one of two (Green) present on Vesa's '61 1800, when the British suppliers of the chassis were still on their best behavior as a subcontractors of Volvo. See also P1800 chassis history.
Trunkseal and Fuel Filler Compartment Drain (1800) Notes
First Published Jan 2020, R. Kwas, updates on-going
Result of Lack of
Adequate Drainage Provision
Fuel
Filler Compartment 1800 Drain
-----------------------------------------------------
General:
The svelte body and design of the 1800, does bring with it some special drainage issues...the clean rear bodywork has no vertical seams for water drainage. Water collecting in the depression where trunkseal is located, as well as water collecting in the Fuel Filler Compartment 1800 Drain both need a way to escape, or else it will remain in a puddle, and grow mold, small water foliage, possibly primordial forms of life, but this is a sure recipe for rust.

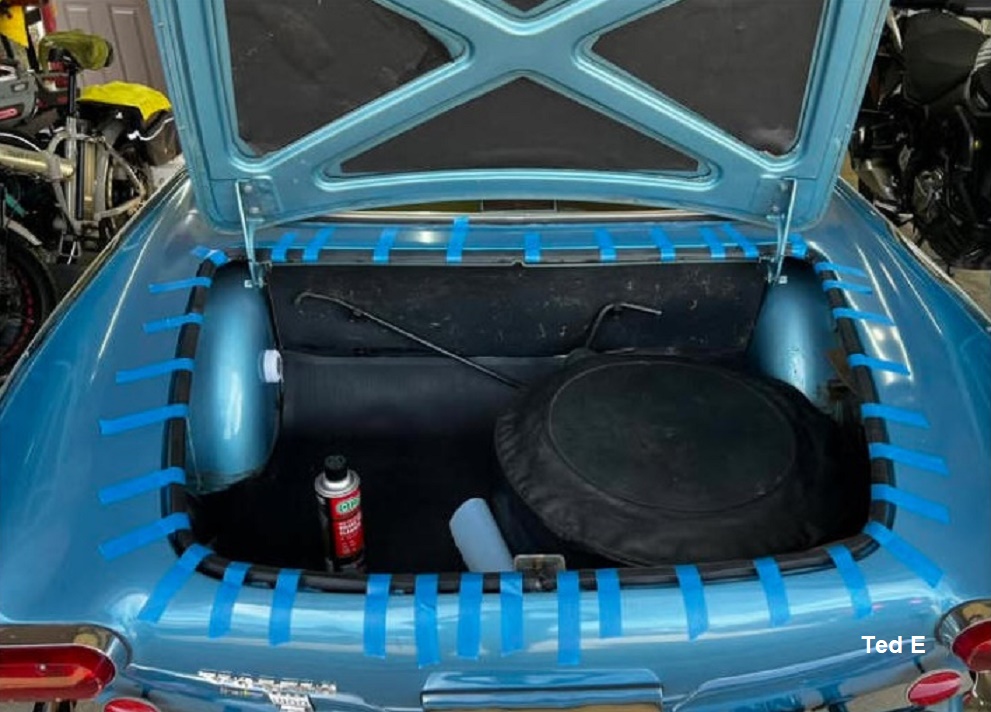

Trunkseal Drainage:
It seems there are variation of drain holes punched with fittings and drainhoses fitted and also no drain holes punched, but no drain hoses fitted from the factory...I am trying to compile the experience of owners of the various production years, to establish a correlation.
Some of the subsequent pictures were supplied by V. Koskinen of the Finnish 1800 Club, and used with his kind permission.
Factory Drainage Provision:
Trunk Lip Drain...one of two (Green) present on Vesa's
'61 1800, when the British suppliers of the chassis were still on their best
behavior as a subcontractors of Volvo. See also
P1800 chassis history.

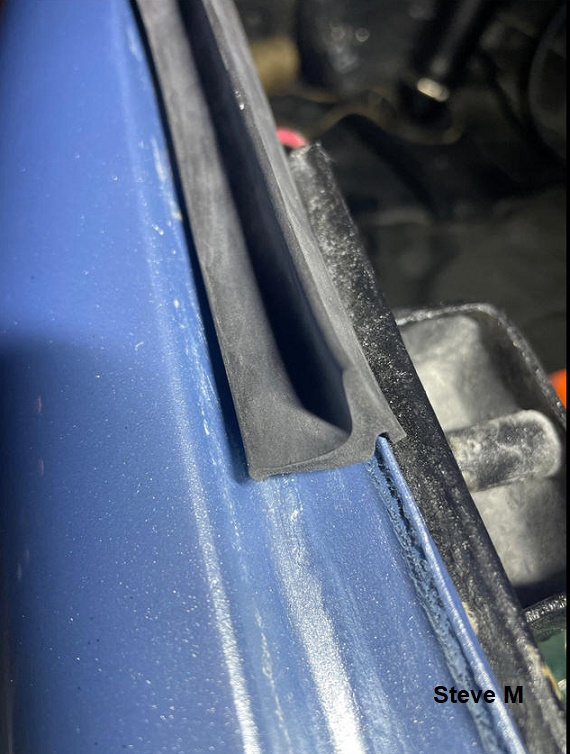

Drain openings (2) are typically obscured by the Trunk-gasket and so not
immediately obvious (especially if no fitting or hose was installed below to
further give
away the location (like also on my '66!), but if present, they will be apparent at approx the lowest
points on either side...look for a half-moon or 3/4" arc punched into the sheetmetal
and only slightly deformed to present a drainage slot (it might be painted shut
too).
Since my Trunkseal depression drain hoses were also not installed (no hose
fittings in sight!), I made some copper
hose-fittings and riveted them into place, below the Drainslots.
PLACEHOLDER FOR PICTURE
Onto these, I installed 3/8* ID clear tubing to tie them into the Fuel-filler Depression drain-hose (thankfully present)! I don't know why the factory never installed the drains on some later cars...maybe the Brits were already cutting corners in ~'65 or so, on their way to working themselves into bankruptcy... The chassis of my '66 was still being supplied to Volvo by Jensen/Pressed Steel Cowley, but shortly after that, the contract was cancelled by Volvo, and production was moved to the Torslanda plant back in Sweden. See also: P1800 Chassis History
Drains can be added (or retrofitted if not present) to the seal surface, using the punched drain openings, and plumbing them to the existing Fuel Filler Compartment Drain tube. J. Massey added some fittings and hose, and tied the drainage into the Fuel Filler Compartment Drainhose under Fuel Filler Compartment...a good solution, as simply allowing drainage to the panel below is asking for rust in the outer panel of the apron (see below!)...there are drainholes, but these are totally inadequate(!)...water would have to find its way to them, and not be captured by any sand there...it's a very BAAAD situation! Any sand or debris is perpetually damp and will cause the panel rust shown below.
Pictures of J. Massey's drainage solution and used with his kind permission.
Result of Lack of Adequate Drainage Provision:
So where does any water (or a dropped Tank or Fuel-Sender Screw) go which is allowed to drain down the little slot between Trunk-floor and outer body skin? In that horizontal ever-narrowing space, baing captured and held there by any debris, that's where!...what does the reader think that will result in...?
View of inner panel, looking from under trunk, rearward (Tank removed, and round
Tank corner of opening is visible). To help with viewer's orientation, Trunk latch is white rectangular box
in upper area of shot. Water which is simply allowed to run down slot
between outer body and Trunkfloor, is then in the space between the inner and
outer panel...sure there are drainholes (Yellow),
but water will be captured by any sand present in that narrow space and promote rust on
both panels as apparent here!. Pictures
by Jean of the Volvoniacs Forum and International P1800 Owners Club (
www.v1800.org ), and used with his kind
permission.
View from below and in back of the vehicle. (Tank removed, Tank opening
is visible)...result of moisture (likely wet sand between inner and outer panels)
is clearly visible.
My response to a
posting on this subject:
"
"
PLACEHOLDER FOR Volvo's PN
My comments to another
posting about
that rear body panel:
"The design and construction of that panel (the lower edge being a horizontal double wall narrowing to nothing, folded and spotwelds uniting the two) is a debris (then water) catcher, so absolutely pre-programmed to rust...maybe that's the way they did things back then...or maybe that's the British panel-beaters union assuring replacement work for themselves forever...so IF you do replace that panel, I highly recommend you ASSURE your drains of the Trunk Seal AND Fuel Filler Depression (for non-Injected) are in place and clear to keep draining water from collecting between the panels again. Don't overlook this...it is CRUCIALLY IMPORTANT to prevent/slow rust on the replacement panel!! See also: https://www.sw-em.com/Trunkseal_and_Fuelfiller_Depression_Drain_1800_Notes.htm#Result_of_Lack_of_Adequate_Drainage_Provision Good Hunting! "
-----------------------------------------------------
Fuel Filler Compartment 1800 (Carburetted) Drain:
A Drainage provision was included for water entering the Fuel-filler Depression.
View of Fuel Filler Compartment with its Drainhose
(Green) connected and routed through
the Trunk-floor to the outside.
Also evident is the Fuel Tank Vent
(Orange), which has a very different function.
Water in the Tank:
It is crucial to keep the small drain opening in the Fuel Filler Compartment, free of debris which can block it, which would allow water to build up to a level high enough to flow into the Fuel-fill pipe! That would be a failed attempt at water injection, and generally BAAAAD! Check for and clear any debris at each fill-up! It doesn't take much to block the tiny drainhole!
Vesa's nicely restored Fuel Filler Compartment. Drain is below locking
tab, location is shown in Orange.
Keep this Drain Clean and Clear!
Why do Fuel tanks fill with rainwater? Unfortunately, the Fill-pipe edge is lower than the Body overflow edge, so if normal path for drainage A is blocked, and spring-loaded rubber seal on Fill-pipe opening is less than perfect, secondary drainge path B is into Tank!! This implementation having originated from a country known for rain...hmmm.
I don't know much, but I know water
likes to run downhill...
This article is focused on water drainage, but recently, a question came up on the area of the Fuel Filler Compartment, concerning the rubber Tankseal and the (necessary!) tank venting. Link to: Correct 1800 Tankseal Installation allows Atmospheric Venting
------------------------------------------------------
Links:
My answer to Swedespeed Thread: Trunk deck lid weatherstrip trough standing water - 1966 P1800S
"...if you look carefully, you should indeed find two drainage provisions at the
low spot on each side...I have them on my 66!...they were halfmoon shaped, only
partially punched deformations, and mostly sealed with paint, and both were
somewhat hidden under the gasket, so not so obvious (until gasket was removed),
and not very effective either!! On the back side of sheetmetal, they had
nothing in the way of a drain tube attached, so any water which did make it
through there, would essentially drip through there, and run down the back side
of the (cardboard) panel in the trunk, draining out below that...and any
remaining water, or water that didn't make it through the drains, just sat there
growing algae or rust, until it as you note, evaporated away (an example of WAY
less-than-impressive British automotive engineering, from a country known for
rain even!)...
Like you, I didn't like this so much either...so I made up some (copper)
fittings to interface with these "drainholes" (which I opened a bit to assure
drainage and flow), and plumbed them up using 1/2" ID clear hose I routed the
drain hose (downhill obviously) over to the Fuel Filler drain (also 1/2" ID),
and Tee"d it in there...this works great!...and no more standing rain-water, or
water draining down inside panels..."
www.v1800.org International P1800 Owner's Club
-----------------------------------------------------
Reference Information:
P1800 Chassis History according to Vesa: "Assembly was moved from Jensen factory, West Bromwich to Sweden already at the beginning of 63. Only 6000 first ones were so called "Jensens". (1800S; S stands for Sweden made). Body parts kept coming from Scotland to Sweden though. (Pressed Steel Cowley)".
------------------------------------------------------
